Aerial Telehandlers

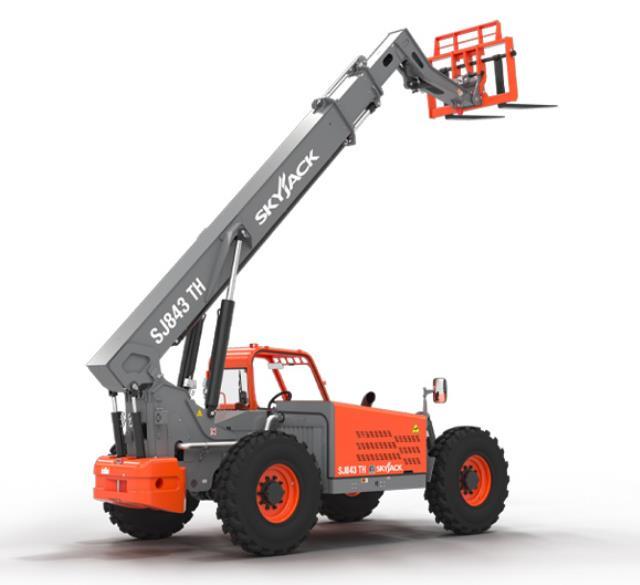

08K Telehandler - Skyjack SJ843TH

Image for reference only
Actual item may look different
Click on image for larger view

Click on above thumbnails for alternate view

Manufacturer: Skyjack

Model: SJ843TH

Quantity:

Additional Information

Overall Width 8' 5" (2.56 m)
Ground Clearance 19" (48.3 cm)
Turning Radius (Inside) 147" (3.73 m)
Fuel Tank 35.7 gal. (142 L)
Hydraulic Reservoir 43.85 gal. (166 L)

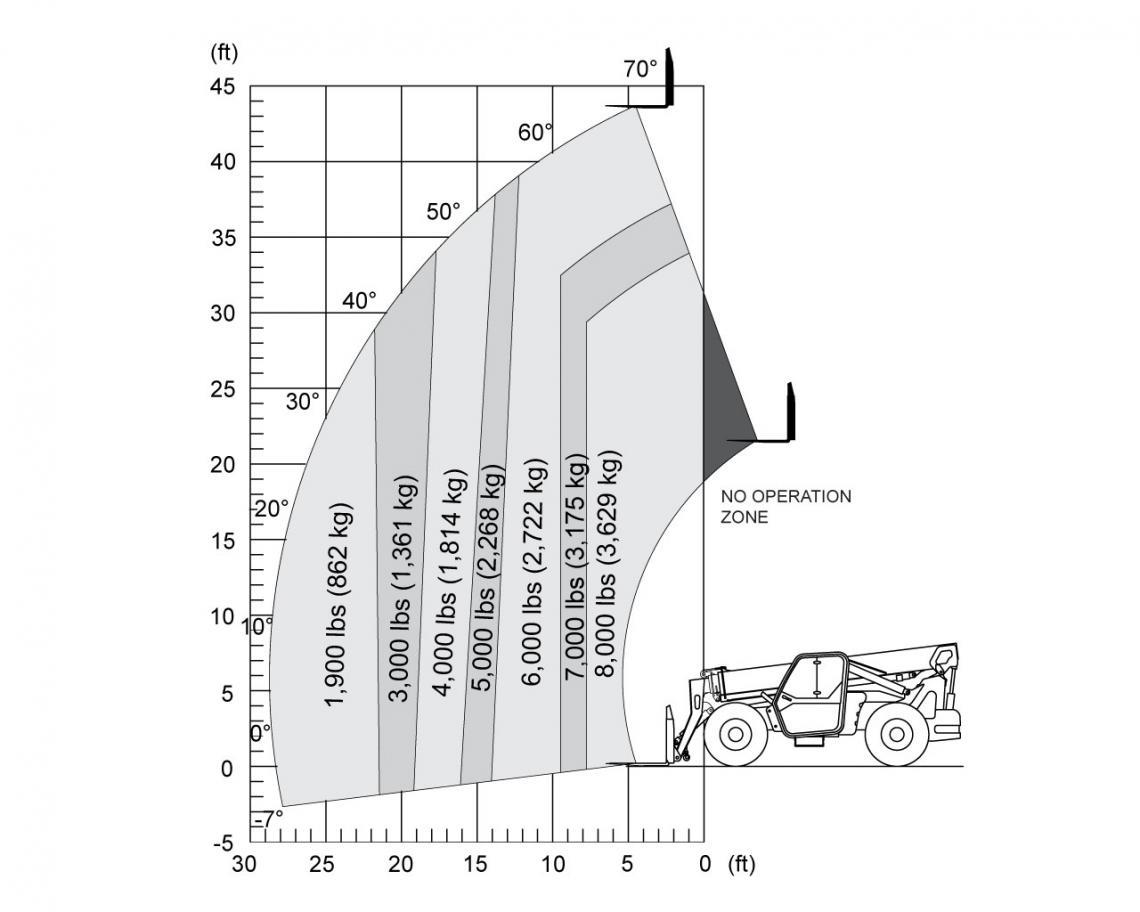

Maximum Lift Capacity 8,000 lbs (3,629 kg)
Maximum Lift Height 43' 4" (13.21 m)
Maximum Forward Reach 28' 7" (8.71 m)
Rated Lift Capacity @ Maximum Height 6,000 lbs (2,722 kg)
Rated Lift Capacity @ Maximum Reach 1,900 lbs (862 kg)
O/A Length - Less Forks 19' 6" (5.94 m)
Overall Height - Stowed 7' 11" (2.41 m)
Operating Weight 23,006 lbs (10,435 kg)
Engine 74hp / 221 lb-ft Deutz TCD 2.2L T4F
Max Travel Speed - Forward 17mph (27 km/h)
Transmission Dana Powershift, 3 Speeds F/R
Axles Dana
Steering 3 mode (Front Wheel, 4 Wheel, Crab)
Tires Foam Filled 13 x 24 16PR Grip Lug
Drawbar Pull 17,750 lbs
